HDMI 2.1 Switch 4 in 1 Out 8K 60Hz 4K 120Hz for PS5 Xbox Apple TV
Product description
-
Power light is off and product is not working. How can I fix this?
Please check these two points first:
• Make sure the product is properly plugged into a power outlet and turned on.
• Verify that your TV or display is set to the correct HDMI input source.
-
My display flickers when I use the switcher. What could be causing this?
Quick Fixes:
• Check connections – Ensure all cables are secure.
• Use a short, HDMI 2.1 cable (under 1.5m) for 8K/60Hz 4:4:4 signal.
4K@60Hz can reach 4m in and 4m out.
• Try a different port on the switcher.
-
The switcher Auto switch function can`t work normally. What could be causing this?
• The HDMI source must be newly connected or powered on from a complete shutdown.
• Note that if the source is in standby mode (still sending a signal), the switcher may recognize it as connected but fail to output a picture or auto-switch properly.
-
The remote control is no working.
If the remote is unresponsive:
Remove the plastic insulator strip from the battery compartment.
Check the IR receiver indicator.
If it is off, long-press the power button for 6 seconds to enable the IR function.
-
Does it support HDR?
Yes! For optimal performance, use a high-quality, standard HDMI 2.1 cable and keep it as short as possible.
Supported HDR Formats:
4K@120Hz YCbCr 4:4:4 8/10bit HDR
4K@120Hz YCbCr 4:2:0 10/12bit HDR
8K@ 60Hz YCbCr 4:4:4 8/10/12bit HDR (with DSC)

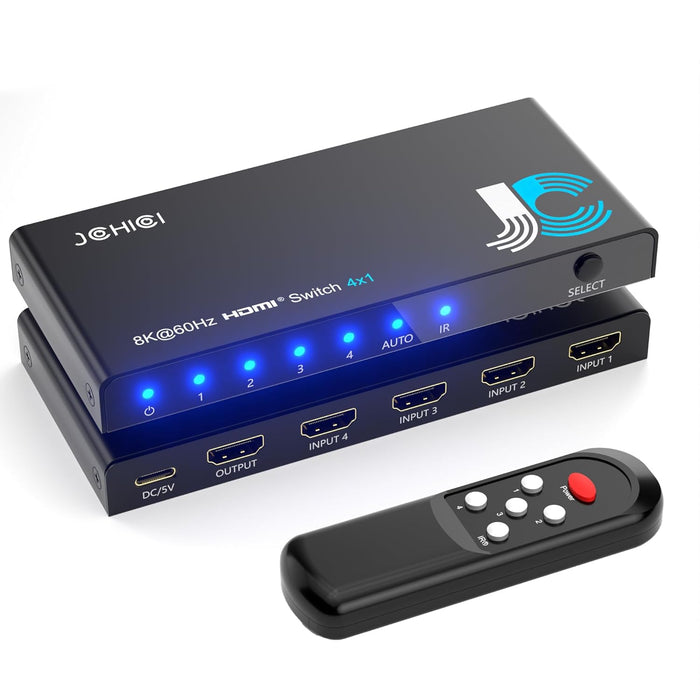

- 💻【4-Input 1-Output HDMI Switch】This HDMI switcher can simultaneously connect up to 4 devices to 1 display, allowing for smooth switching between the 4 devices with a single push. It meets various usage needs and greatly enhances work efficiency.
- 💻【8K@60Hz Ultra High Resolution】Supports ultra high resolution video formats such as HDR and 3D at 8K@60Hz/4K@120Hz/2K@240Hz, with backward compatibility (480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60/120Hz). [Note: To achieve 8K resolution, please use an HDMI 2.1 compliant cable.]
- 💻【High-Quality Audio Output】Not only image quality but also sound quality is crucial. This product supports high-quality compressed audio formats such as DTS5.1/7.1 and Dolby Digital (including DTS-HD Master Audio and Dolby TrueHD), as well as uncompressed audio formats like LPCM5.1/7.1. This allows you to enjoy an immersive theater-like experience at home.
- 💻【Device Compatibility】To use our 8K switcher, the following conditions must be met: ①Both the input source device and the output device must support 8K bandwidth and 8K resolution. ②Cable Requirements: A certified HDMI 2.1 cable must be used for connection. Recommended Maximum Cable Lengths: 8K@60Hz / 4K@120Hz: 2 meters (for both input and output)； 4K@60Hz: 5 meters (for both input and output) ③Input devices: computers, DVDs, cameras, PS3/4/5, Switch, Xbox, Fire TV Stick, etc. ④Output devices: displays, HDTVs, Apple TV, screens, VR, etc. Plug-and-play, extremely convenient.
- 💻【Supports VRR, ALLM, QFT】This product is compatible with the latest HDMI 2.1 standard, supporting VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport). VRR effectively prevents tearing and stuttering during gameplay, providing a smooth and seamless visual experience. ALLM automatically switches to low latency mode when detecting gameplay on the connected device, enhancing response time. Furthermore, QFT accelerates frame transmission speed, minimizing latency for gaming and video content that requires real-time response, resulting in a smoother and more comfortable viewing experience.
- 💻【Usage Notes】 ①Bandwidth & Resolution Output resolution must not exceed 48 Gbps maximum bandwidth. Supported formats include 8K@60Hz 4:4:4 12-bit HDR and 4K@120Hz 4:4:4 10-bit HDR. ②Cable Length Maximum recommended cable length: 8K@60Hz/4K@120Hz: 2m (input & output) 4K@60Hz: 5m (input & output) ③Auto-Switch HDMI source must be newly connected or powered on from complete shutdown. Devices in standby mode may prevent proper switching or video output. ④Signal Quality Weak signals may cause flickering or no video/ sound. Try switching to alternate ports on device or switcher to improve stability.
- 💻【Remote/Auto Switching】Includes a high-performance remote control that enables remote operation from up to 8m away. Additionally, it supports auto-switching, automatically switching to the input port where an HDMI signal is detected. (To prevent accidental operation, the remote control and auto-switching functions can be manually turned on/off.)
- 💻【48Gbps High-Speed Stable Transmission】With a bandwidth of up to 48Gbps, it ensures high-speed and stable signal transmission, eliminating lag. It also supports HDCP2.3 digital content protection technology, greatly ensuring privacy security.
- 💻【Reliable After-Sales Service】We have a strong after-sales service team, providing a 18-month warranty and lifelong technical support. If any issues arise, please feel free to contact us through Amazon. We promise satisfactory service, so buy with confidence.

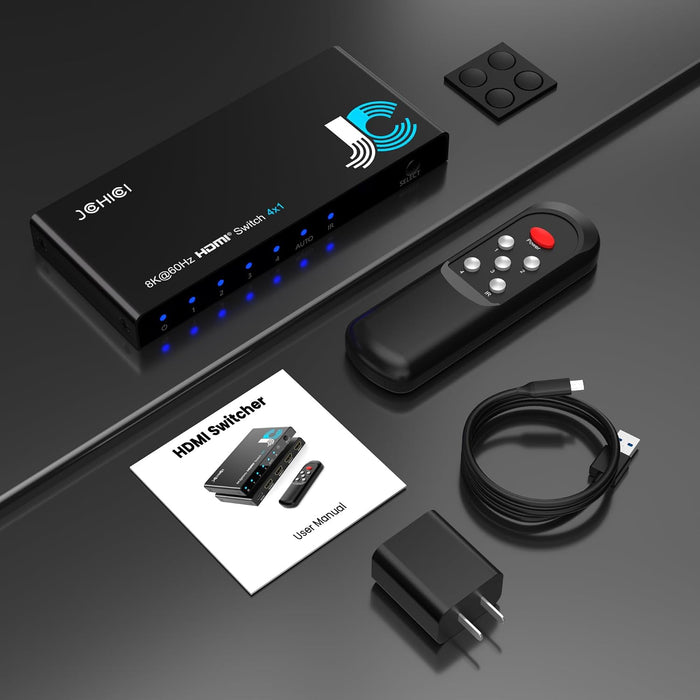

- 💻【Package Contents】①HDMI Switch x1, ②Remote Control x1, ③Instruction Manual x1, ④Power Adapter x1, ⑤USB Cable x1, ⑥Anti-slip mat x1 (Note: The remote control requires 2 AAA batteries, which are not included in the package and must be purchased separately).
